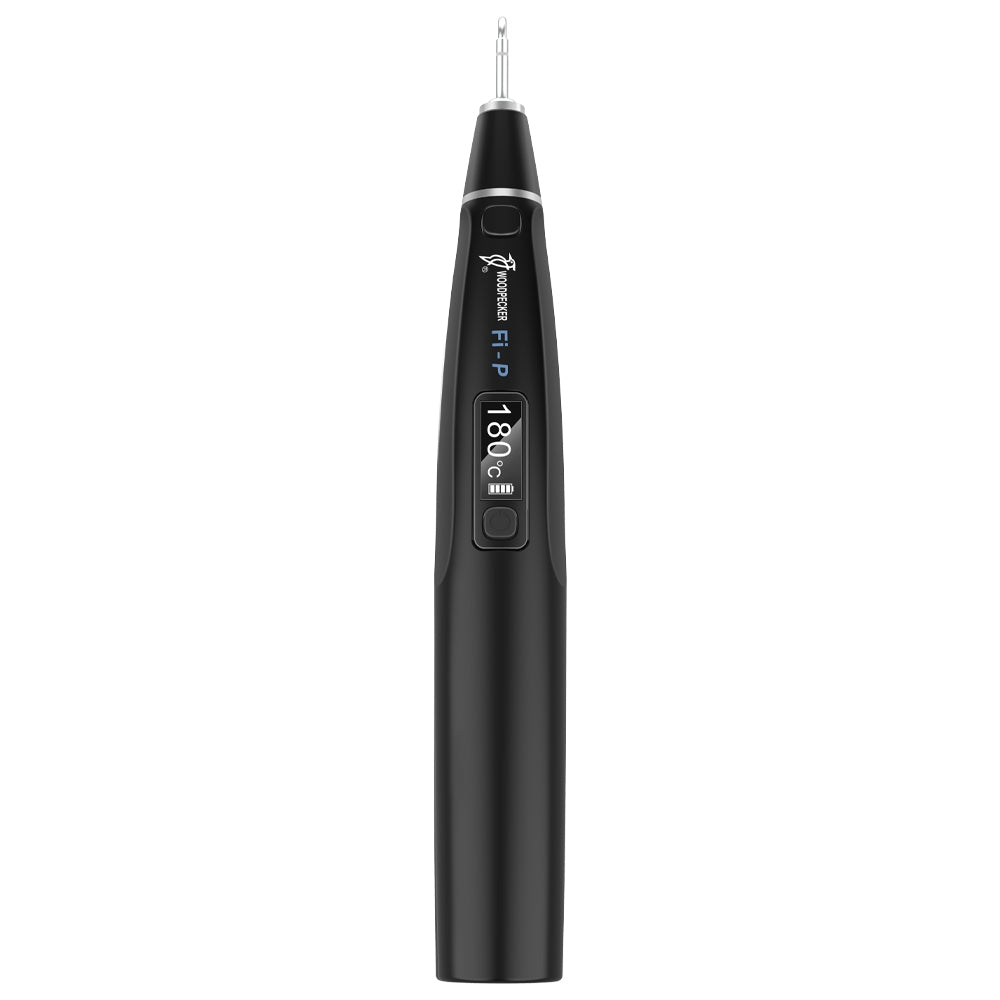

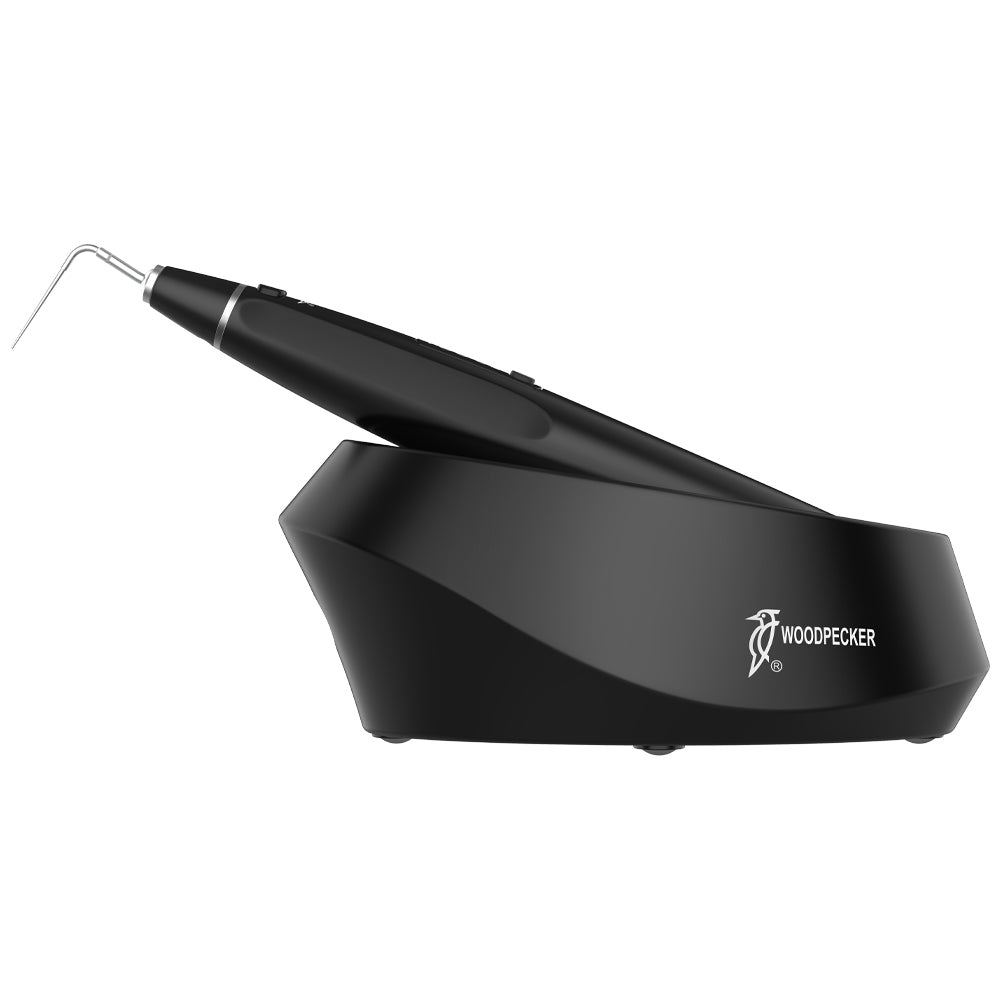

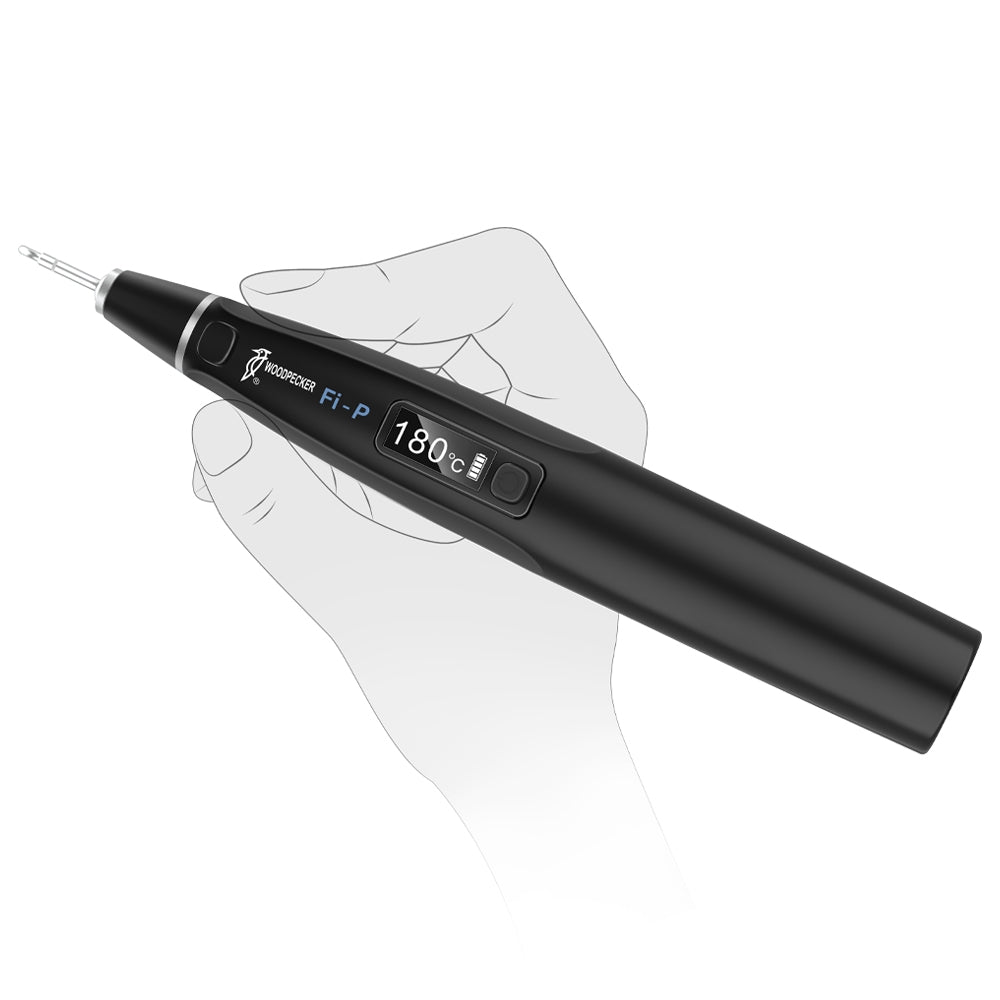

Woodpecker Fi-P Gutta-Percha Obturation Heat & Packing Pen - Black

Woodpecker Fi-P Gutta-Percha Obturation Heat & Packing Pen - Black

The Fi-P Woodpecker heat and packing pen is a cordless obturation pen designed for warm vertical compaction and efficient gutta-percha handling during root canal treatment. Used as part of the Woodpecker obturation system, the Fi-P works with the Fi-G hot melting and filling gun to deliver predictable, controlled gutta-percha obturation for endodontic procedures.

Clinicians often refer to Fi-P as a gutta percha pen or Woodpecker heat plugger because it is built to cut, heat, and pack gutta-percha quickly with consistent temperature performance. The Fi-P is ideal for shaping and compacting in the canal while supporting a smooth workflow when combined with an obturation gun.

The Fi-P (Heat & Packing) and Fi-G (Hot Melting & Filing Gun) work in conjunction with each other for the ultimate gutta-percha obturation system for your root canal procedures.

How the Woodpecker Obturation System Works

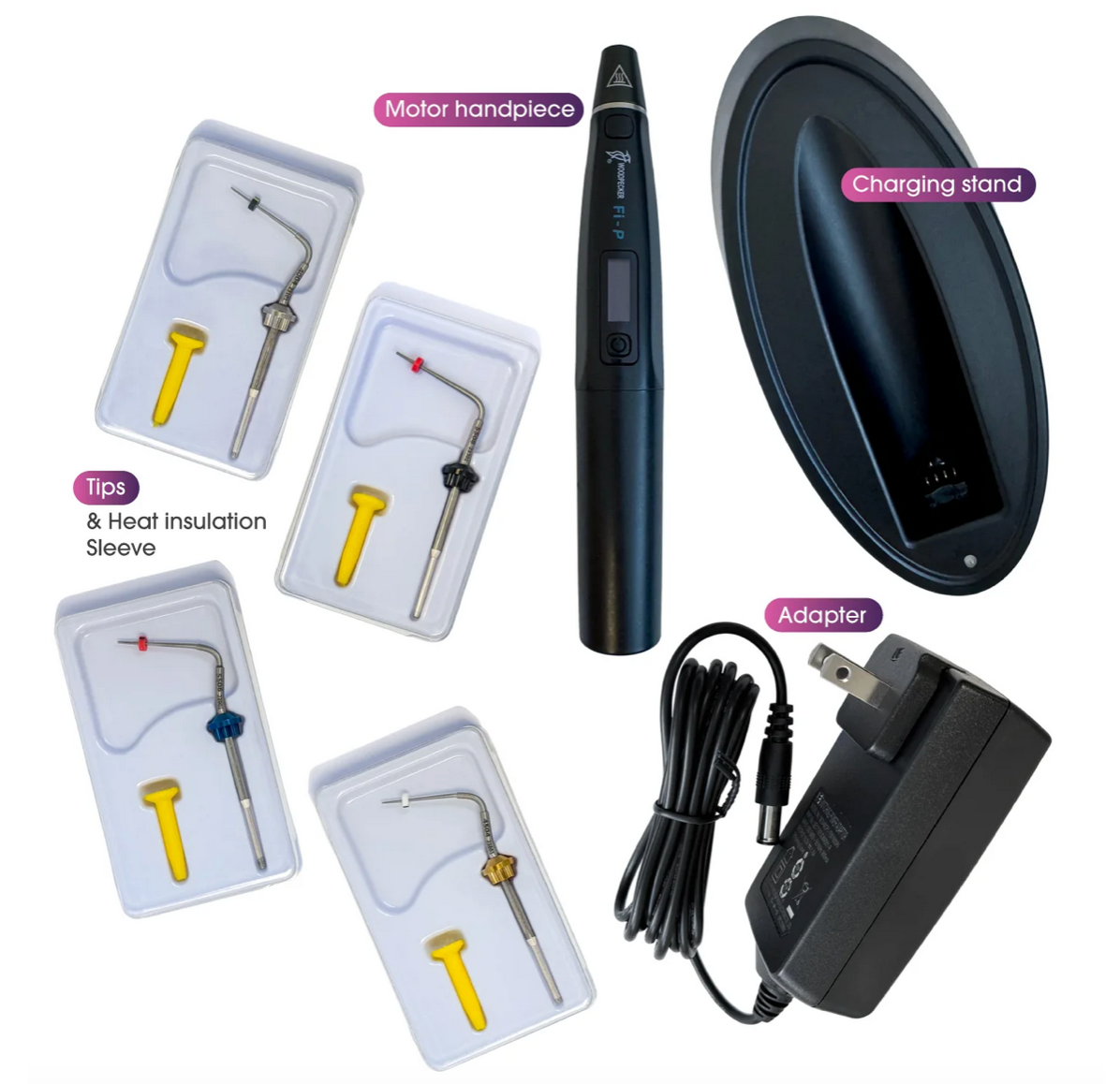

WFLP (Fi-P) Heat & Packing Pen Includes

The WFLP kit includes the Fi-P Woodpecker heat plugger and accessories used for gutta-percha heating and packing during obturation.

• 1 x Main unit
• 1 x Charging stand
• 1 x Power adapter
• 1 x WP4004 tip (Taper 4%)
• 1 x WP4504 tip (Taper 4%)
• 1 x WP5506 tip (Taper 6%)
• 1 x WP5508 tip (Taper 8%)
• 4 x Heat insulation sleeve of tips
• 1 x Instruction manual

Fi-P Heat Plugger Feature Summary

The Fi-P Woodpecker obturation pen is designed for controlled heating and packing. It supports warm vertical compaction techniques and helps optimize obturation results for a wide range of canal anatomies.

Instructions for Use

The steps below show a typical workflow using a gutta percha obturation pen and obturation gun system. Fi-P is used for heating and packing, and Fi-G is used for thermoplasticized gutta-percha backfill.

01

According to the prepared root canal, choose a proper chief gutta-percha tip.

02

Choose proper tip for Heating and Packing Instrument, place the tip into the root canal and keep it 4-7mm away from the apical foramen, and use a pad to mark the length. At the same time, choose a plugger of the same size.

03

Dip the sealing material with the chief gutta-percha tip, and then put that gutta-percha tip into the root canal.

04

Put the tip of Heating and Packing Instrument into the root canal, press heating button for heating, cut off the redundant part of gutta-percha and take it out.

05

Put the tip into the root canal, press heating button for heating, and push the tip to soften the gutta-percha until the tip reach a place where is 4-7mm away from the apical foramen. (Do not heat up for more than 3s. Meanwhile, keep the tip moving while heating and avoid heating at a certain part for a long time, or it is likely to scalding the root canal.)

06

Release the heating button to stop heating, but keep pressing the gutta-percha in the root canal with tip for about 10s.

07

Press heating button for about ls, and rapidly take out the gutta-percha 4-7mm away from the apical foramen.

08

Use plugger to impact the gutta-percha in the root canal.

09

Get the needle of Hot Melting and Filling Gun touch the surface of gutta-percha in the root canal, and stay there for 3s to soften the gutta-percha.

10

Inject the melted gutta-percha into the root canal, and withdraw the needle at the same time. (Do not fully fat the root canal at only one time. It is recommended to fill it in 3 times, or a single injection should not exceed 4mm.)

11

Use plugger to impact the injected gutta-percha in the root canal.

12

Repeat Step 9 to Step 11 until the root canal filling is finished.
